Type and Specification Compilation Description

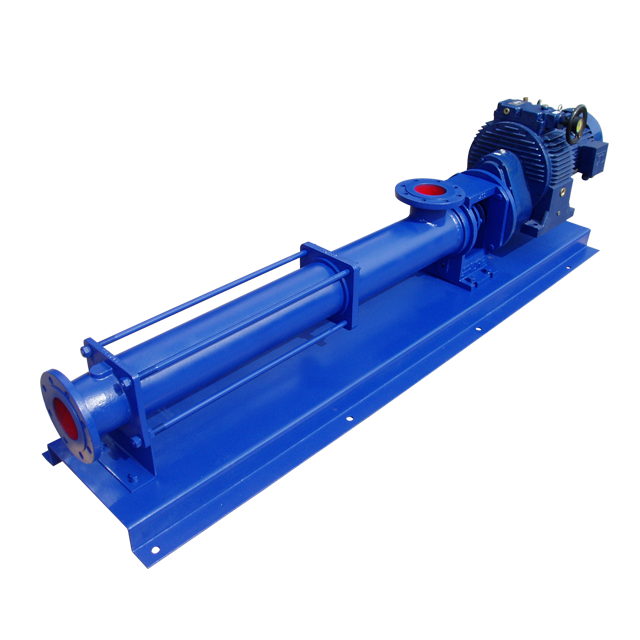

G型單螺桿泵
Wide application,deliver all kinds of fluid media,even non-fluid ones Bilateral rotation and delivery Stable capacity and pressure,no pulse Capacity is proportional to speed,so the pump can be used as dosing pump Low operated noise,no-leakage and no temperature rise Long life,low cost of operation maintenance
Working Features
◆ Wide application,deliver all kinds of fluid media,even non-fluid ones
◆ Bilateral rotation and delivery
◆ Stable capacity and pressure,no pulse
◆ Capacity is proportional to speed,so the pump can be used as dosing pump Low operated noise,no-leakage and no temperature rise
◆ Long life,low cost of operation maintenance
Delivery Media
◆ Different viscous liquids,especially for the liquids with high viscosity which are difficult to be pumped.(uo to 106mm2/s)
◆ Different dense liquids and dewatered dry medium
◆ Liquids with solid particles (up to 70%),fibers (up to 350mm) and suspending media
◆ Intermixtures of liquid,air and solid
◆ Senstive liquids that can not be churned,sheared and compressed
◆ Corrosive liquids(PH=0-14)
◆ Fluid at hign or low temperature(-10-150℃)
Application Area
Environmental engineering
◆ Separate oil from water and desulfurize from waste air
◆ Metering and dosing flocculation and other chemical compound
◆ Delivery of dewatered sludge
◆ Delivery of all kinds of sewage
Paper Making Industry
◆ Dregs slurry and waste water treatment
◆ Metering for chemical slurry
◆ Spreading and coloring process
◆ Perparing for material
Oil Industry
◆ Viscous oil delivery
◆ Mixed delivery of oil and air
◆ Separating oil from water and waste oil recovery system
Sewage treatment
◆ Polymer delivery
◆ Electrolyte Treatment
◆ Chemical and pharmaceutical industry
◆ Various pasted liquids
◆ Various milky liquids
◆ Various suspending liquid
◆ Liquids with air or solid
◆ Liquids which can not be churned or sheared
Mine Industry
◆ Preparing and deliverying the water and coal slurry
◆ Producing and preparing the titanium white powed,kaolin and carbonate
◆ Feeding whirl fluid body and filtrate body on meterial
◆ Dosing chemical slurry
◆ Loading and grputing
Fooding Industry
◆ Milk products
◆ Fruit juice,mashed fruit,vegetable slurry
◆ Meat gruel and flavoring
◆ Bear and brewing industry

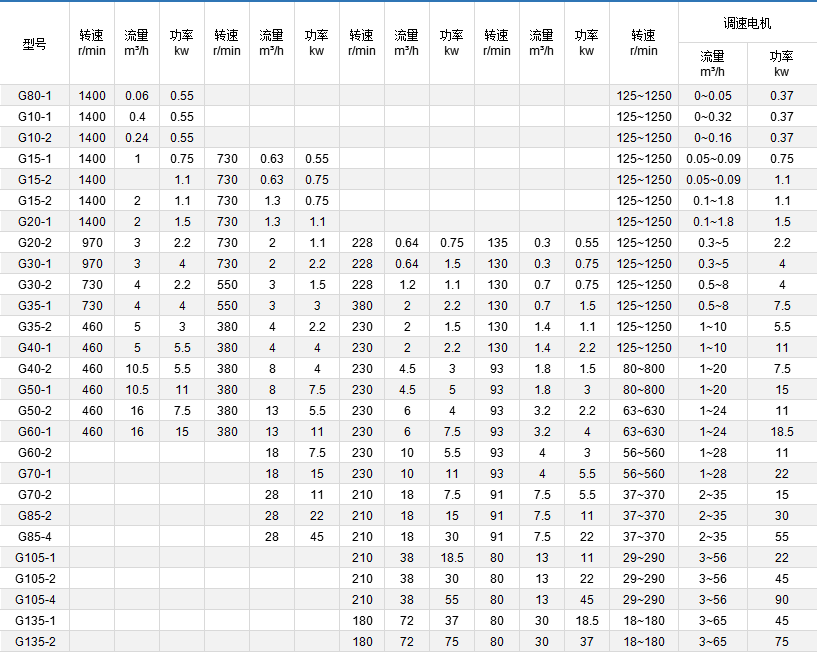

Parameters
Installation diagram

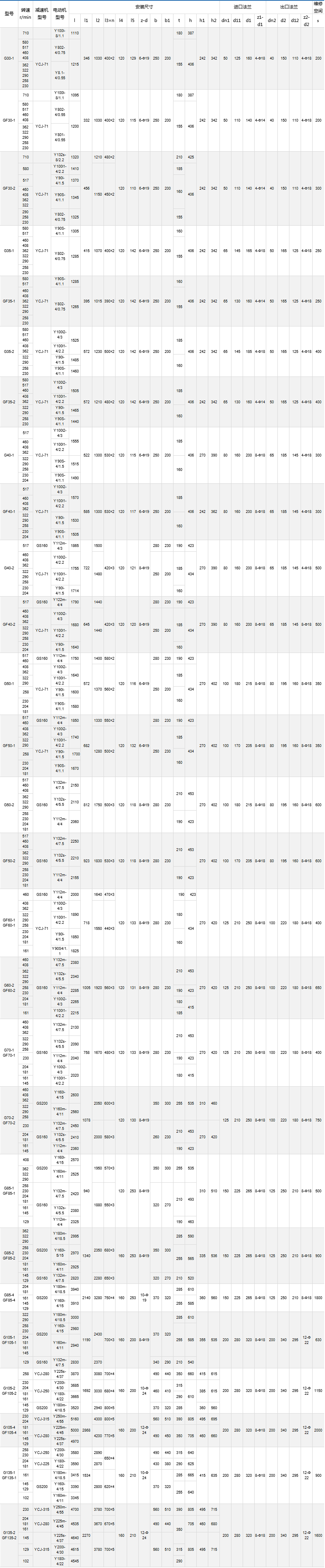

Install Size
